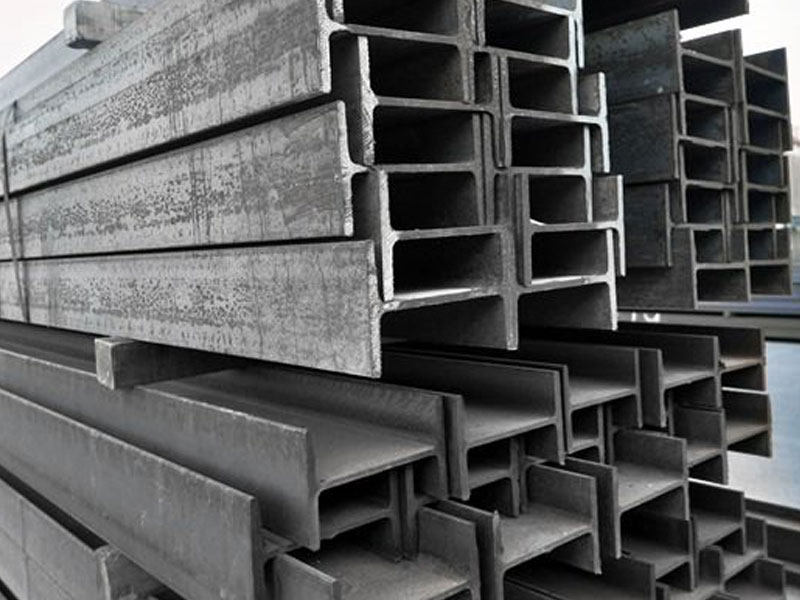

Viga IPR

Perfil Peso Área Peralte Patín Espesor Eje – X X Eje – Y Y
IPR d b del alma
d x b Kg/m cm2 mm Ancho Espesor mm I S r I S r
mm mm cm4 cm3 cm cm4 cm3 cm
6″ x 4″ 13.4 17.29 149.86 100.07 5.46 4.31 682.61 91.11 6.27 91.57 18.18 2.29
152.4×101.6 17.9 22.77 152 102 7.1 5.8 903 119 6.3 120.2 23 2.3
23.8 30.45 159 102 10.3 6.6 1,318.00 165 6.58 197.8 35 2.43
8″ x 4″ 14.9 19.03 201 100 5.2 4.3 1,282.00 127 8.2 92.8 16 2.08
203.2×101.6 19.4 24.71 203 102 6.5 5.8 1,644.00 162 8.15 109 21 2.1
22.4 28 206 102 8 6.2 1,998.00 193 8.35 137.3 27 2.19
58
8″ x 5 1 / 4″ 26.9 33.93 206.75 133.35 8.38 5.84 2,576.47 249.08 8.71 331.73 49.81 3.12
203.2×133.4 31.3 39.74 120.31 133.85 10.16 6.35 3,134.22 298.24 8.86 406.65 60.79 3.2
10″ x 4″ 17.9 21.87 151 100 5.2 4.6 2,160.00 172 9.96 83.6 17 1.95
254.0×146.0 22.4 28.38 254 102 6.8 5.8 2,864.00 226 10.03 116.1 23 2.02
25.5 32.13 257 102 8.4 6.1 3,405.00 265 10.28 143.6 28 2
28.3 36.19 260 102 10 6.4 4,004.00 308 10.52 174.4 34 2.19
10″ x 5 3 / 4″ 32.8 42.87 258.31 146.05 9.14 6.09 4,911.53 380.18 10.84 474.5 65.05 3.37
254.0×146.0 38.7 47.09 262.38 146.55 11.17 6.6 5,993.73 457.2 11.04 586.88 80.13 3.45
44.7 57.03 265.93 148.57 12.95 7.62 7,075.93 530.94 11.12 695.1 94.22 3.47
12″ x 4″ 20.9 26.71 302 100 5.7 5.1 3,671.00 243 11.71 93.6 18 1.87
304.8×101.6 23.8 30.38 304.54 101.34 6.73 5.58 4,287.18 280.22 11.86 117.37 23.1 1.96
28.3 36.25 307 102 8.9 6.1 5,415.00 350 12.22 152.7 30 2.05
32.8 41.74 313 102 10.8 6.6 6,481.00 414 12.47 189.3 37 2.13
12″ x 6 1 / 2″ 38.7 49.35 310.38 168.48 9.65 5.84 8,491.12 547.33 13.13 720.08 87.5 3.83
304.8×165.1 44.7 56.7 313.43 465.6 11.17 6.6 9,906.30 632.54 13.23 844.94 102.25 3.86
52.2 66.45 317.5 166.62 13.2 7.62 11,862.59 747.25 13.33 1,019.75 122.41 3.91
12″ x 8″ 559.6 75.94 303 203 13.1 7.5 12,907.00 850 13.03 1,835.00 180 4.92
304.8×203.2 67.1 85.42 306 204 14.6 8.5 14,600.00 953 13.08 2,081.00 203 4.92
74.5 94.9 309 205 16.3 9.4 16.420.00 1,060.00 13.15 2,347.00 229 4.97
14″ x 6 3 / 4″ 44.7 56.84 352 171 9.7 6.9 12,053.00 685 14.5 728 85 3.58
355.6×171.4 50.7 64.52 356 171 11.5 7.3 14,117.00 795 14.8 886 103 3.7
56.6 72.06 359 172 13 7.9 16,036.00 895 14.9 1,023.00 120 3.78
14″ x 8″ 64.1 81.61 347 203 13.4 7.8 17,856.00 1,027.00 14.78 1,877.00 185 4.8
355.6×203.2 71.5 97.03 351 204 15.1 8.6 20,183.00 1,150.00 14.88 2,135.00 209 4.85
79 100.58 354 205 16.7 9.4 22,562.00 1,275.00 14.98 2,403.00 234 4.87
16″ x 7″ 53.6 68.32 403 177 10.9 7.6 18,576.00 923 16.48 920 103 3.68
406.4×177.8 59.6 75.94 406 178 12.7 7.8 21,457.00 1,055.00 16.81 1,103.00 125 3.61
67.1 85.42 409 179 14.3 8.8 24,279.00 1,186.00 16.87 1,270.00 143 3.86
74.5 94.84 413 180 15.9 9.6 27,280.00 1,322.00 16.97 1,448.00 161 3.91
18″ x 7 1 / 2″ 96.9 123.22 466.09 192.78 19.5 11.43 44,537.76 1,917.29 19.02 2,280.94 235.97 4.29
457.2×190.5 105.6 134.19 169.163 193.92 20.57 12.57 48,699.07 2,081.16 19.05 2,509.87 258.91 4.31
18″ x 11″ 113.2 143.87 462.53 280.29 17.27 10.79 55,358.78 2,392.52 19.63 6,326.71 452.28 6.62
457×279.4 128.1 163.22 467.1 281.68 19.55 12.19 63,683.40 2,720.26 19.73 7,284.05 517.83 6.68
144.3 183.87 472.18 283.08 22.09 13.58 72.840.50 3,080.78 19.86 8,366.25 591.57 6.73
157.7 200.64 475.74 284.48 23.87 14.98 79,500.20 3,342.98 19.91 9,157.09 645.65 6.75
177.3 226.45 481.83 286.13 26.92 16.63 91,154.68 3785.43 20.06 10,530.65 735.78 6

Descargar ficha

Productos relacionados
Siguiente producto
Product Image

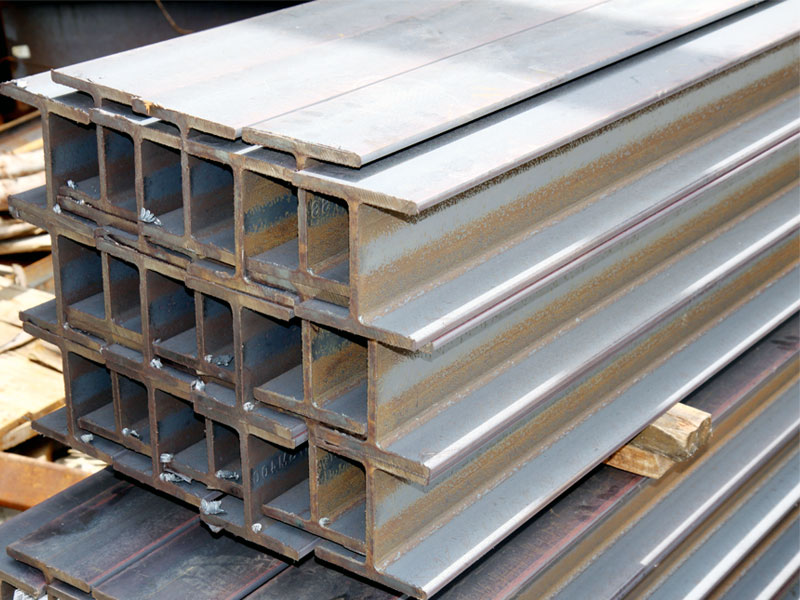

Viga IPS
