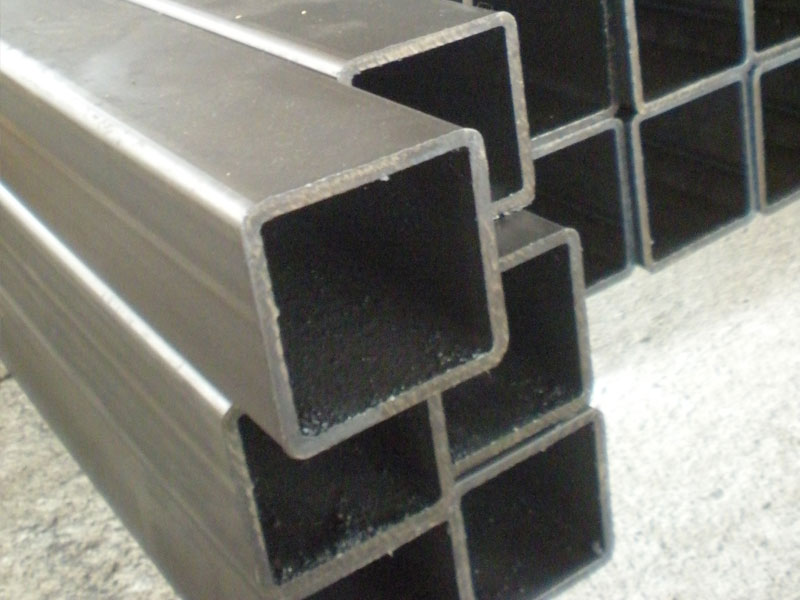

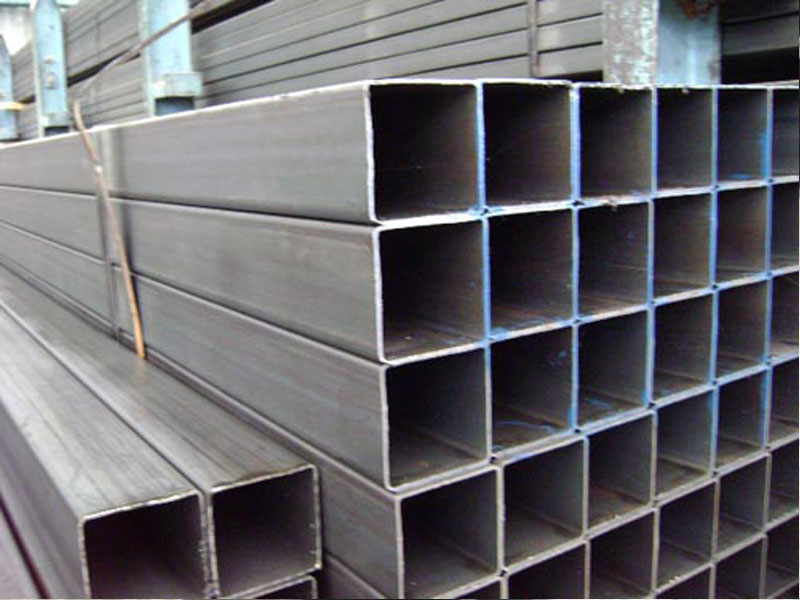

Perfil HSS
| Tabla de pesos Perfiles HSS kg. x Metro | ||||||||
| Medida | Medida | Espesor pared | ||||||
| Cuadrada | Rectanular | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | 5/8 |
| 4×4 | … | 9.61 | 14.02 | 18.17 | 22.07 | 25.7 | 32.19 | 37.59 |
| 2 x 6 | 9.61 | 14.02 | 18.17 | … | … | … | … | |
| 3 x 5 | 9.61 | 14.02 | 18.17 | 22.07 | 25.7 | 32.19 | 37.59 | |
| 4 1 / 2 x 4 1 / 2 | 3 x 6 | 10.63 | 15.92 | 20.7 | … | … | … | … |
| 10.63 | 15.92 | 20.7 | 25.24 | 29.49 | ||||
| 5 x 5 | … | 11.85 | 17.81 | 23.24 | 28.39 | 33.29 | 42.3 | 50.23 |
| 2 x 8 | 11.85 | 17.81 | 23.24 | … | … | … | … | |
| 3 x 7 | … | 17.81 | 23.24 | 28.39 | 33.29 | … | … | |
| 4 x 6 | 11.85 | 17.81 | 23.24 | 28.39 | 33.29 | 42.3 | 50.23 | |
| 5 1 / 2 x 5 1 / 2 | 3 x 8 | 12.94 | 19.72 | 25.77 | 31.56 | 37.1 | … | … |
| 6 x 6 | 4 x 8 | 14.42 | 21.62 | 28.3 | 34.73 | 40.89 | 52.44 | 62.88 |
| 5 x 7 | 14.42 | 21.62 | 28.3 | 34.73 | 40.89 | 52.44 | 62.88 | |
| 2 x 10 | … | 21.62 | 28.3 | … | … | … | … | |
| 3 x 10 | … | 23.51 | 30.83 | 37.9 | … | … | … | |
| 7 x 7 | 4 x 10 | … | 25.42 | 33.36 | 41.05 | 48.48 | 62.57 | 75.53 |
| 6x 8 | … | 25.42 | 33.36 | 41.05 | 48.48 | 62.57 | 75.53 | |
| 2 x 12 | … | 25.42 | 33.36 | … | … | … | … | |
| 3 x 12 | … | 27.3 | 35.89 | 44.22 | … | … | … | |
| 5 x 10 | … | 27.3 | 35.89 | 44.22 | 52.59 | … | … | |
| 8 x 8 | … | … | 29.21 | 38.42 | 47.38 | 56.08 | 72.69 | 88.27 |
| 4 x 12 | … | 29.21 | 38.42 | 47.38 | 56.08 | 72.69 | … | |
| 6 x 10 | … | 29.21 | 38.42 | 47.38 | 56.08 | 72.69 | … | |
| 4 x 14 | … | … | 43.49 | 53.72 | 63.67 | 82.82 | … | |
| 8 x 10 | … | 33 | 43.49 | 53.72 | 63.67 | 82.82 | …. | |
| 6 x 12 | … | 33 | 43.49 | 53.72 | 63.67 | 82.82 | …. | |
| 10 x 10 | … | … | 36.8 | 48.55 | 60.04 | 71.28 | 92.94 | 113.58 |
| 4 x 16 | … | … | 48.55 | 60.04 | 71.28 | 92.94 | … | |
| 6 x 14 | … | … | 48.55 | 60.04 | 71.28 | 92.94 | … | |
| 8 x 12 | … | … | 48.55 | 60.04 | 71.28 | 92.94 | … | |
| 10 x 12 | … | …. | 56.61 | 66.36 | 78.86 | 103.06 | … | |
| 12 x 12 | … | … | … | 58.67 | 72.7 | 86.45 | 113.19 | 138.76 |
| 6 x 18 | … | … | 58.67 | 72.7 | 86.45 | 113.19 | … | |
| 8 x 16 | … | … | 58.67 | 72.7 | 86.45 | 113.19 | … | |
| 10 x 14 | … | … | 58.67 | 72.7 | 86.45 | 113.19 | … | |
| Descripción | Peso | Área | Eje x – x | ||||
| Tamaño y Espesor | I | S | r | ||||
| mm | in. | kg / m | ib / ft.m | cm2 | cm4 | cm3 | cm |
| 102 x 3.0 | 4″ x 0.120 | 9.62 | 6.46 | 12.26 | 195.63 | 38.36 | 3.99 |
| 102 x 6.4 | 4″ x 0.250 | 18.17 | 12.21 | 23.16 | 342.14 | 67.35 | 3.84 |
| 102 x 9.5 | 4″ x 0.375 | 25.7 | 17.27 | 32.77 | 445.37 | 86.67 | 3.69 |
| 152 x 6.4 | 6″ x 0.250 | 28.3 | 19.02 | 36.1 | 1261.51 | 165.51 | 5.91 |
| 152 x 9.5 | 6″ x 0.375 | 40.89 | 27.48 | 52.13 | 1731.52 | 227.78 | 5.76 |
| 152 x 12.7 | 6″ x 0.500 | 52.44 | 35.24 | 67.1 | 2101.97 | 275.3 | 5.6 |
| 127 x 6.4 | 5″ x 0.250 | 23.25 | 15.62 | 29.61 | 703.43 | 111.1 | 4.87 |
| 127 x 9.5 | 5″ x 0. 375 | 33.29 | 22.37 | 42.45 | 949 | 149.29 | 4.73 |
| 203 x 6.4 | 8″ x 0.250 | 38.42 | 25.82 | 48.97 | 3125.9 | 308.1 | 7.99 |
| 203 x 9.5 | 8″ x 0.375 | 56.1 | 37.69 | 71.61 | 4412.1 | 432.62 | 7.85 |
| 203 x 12.7 | 8″ x 0.500 | 72.7 | 48.85 | 92.9 | 5452.63 | 539.13 | 7.66 |
| 305 x 9.5 | 12″ x .375 | 86.46 | 58.1 | 110.32 | 12817 | 1039 | 11.97 |
| 305 x 12.7 | 12″ x 500 | 113.2 | 76.07 | 144.52 | 20187 | 1325.71 | 11.82 |
| Descripción | Peso | Área | Eje X-X | Eje Y-Y | ||||||
| Tamaño y Espesor | I | S | r | I | S | r | ||||
| mm. | in. | kg/m | lb/ft.m | cm2 | cm4 | cm3 | cm | cm4 | cm3 | cm |
| 127 x 76 x 3.0 | 5 x 3″ x 0.120 | 9.61 | 6.46 | 12.26 | 268.05 | 42.21 | 4.68 | 121.96 | 32.09 | 3.15 |
| 127 x 76 x 6.4 | 5 x 3″ x 0.250 | 18.17 | 12.21 | 23.16 | 470.34 | 74.1 | 4.51 | 210.2 | 55.22 | 3.01 |
| 152 x 102 x 3.0 | 6 x 4″ x 0.120 | 12.14 | 8.16 | 15.48 | 507.8 | 66.82 | 5.73 | 273.46 | 53.62 | 4.2 |
| 152 x 102 x 6.4 | 6 x 4″ x 0.250 | 23.24 | 15.62 | 29.61 | 919.87 | 120.61 | 5.57 | 487 | 96.19 | 4.06 |
| 203 x 102 x 3.0 | 8 x 4″ x 0.120 | 14.67 | 9.86 | 18.71 | 1023.93 | 100.88 | 7.4 | 351.71 | 68.96 | 4.34 |
| 203 x 102 x 6.4 | 8 x 4″ x 0.250 | 28.3 | 19.02 | 36.06 | 1877.2 | 195.17 | 7.22 | 636.83 | 126 | 4.2 |
| 203 x 102 x 9.5 | 8 x 4″ x 0.375 | 40.89 | 27.48 | 52.13 | 2576.47 | 254 | 7.03 | 857.44 | 168.79 | 4.06 |
| 254 x 102 x 4.8 | 10 x 4″ x 0.188 | 25.42 | 17.08 | 32.39 | 2586.15 | 201.56 | 8.94 | 616.02 | 121.1 | 4.36 |
| 406 x 203 x 9.5 | 16 x 4″ x 0.375 | 71.28 | 47.9 | 90.97 | 15900 | 783.3 | 13.22 | 1681.39 | 331 | 4.3 |
